At the beating heart of every lighthouse is the beacon and this has to be one of the most realistic and customizable scale lighthouse beacons available.

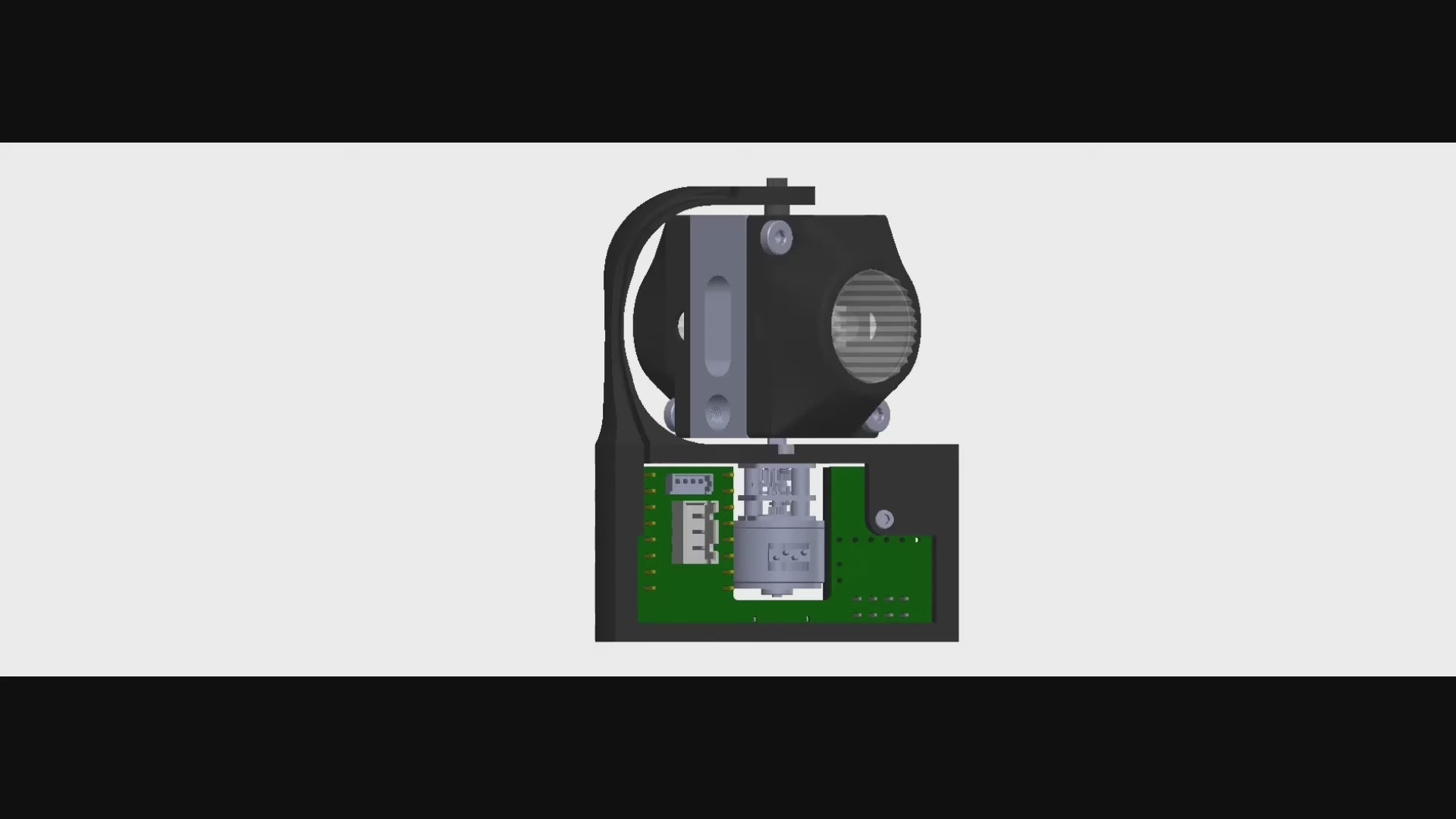

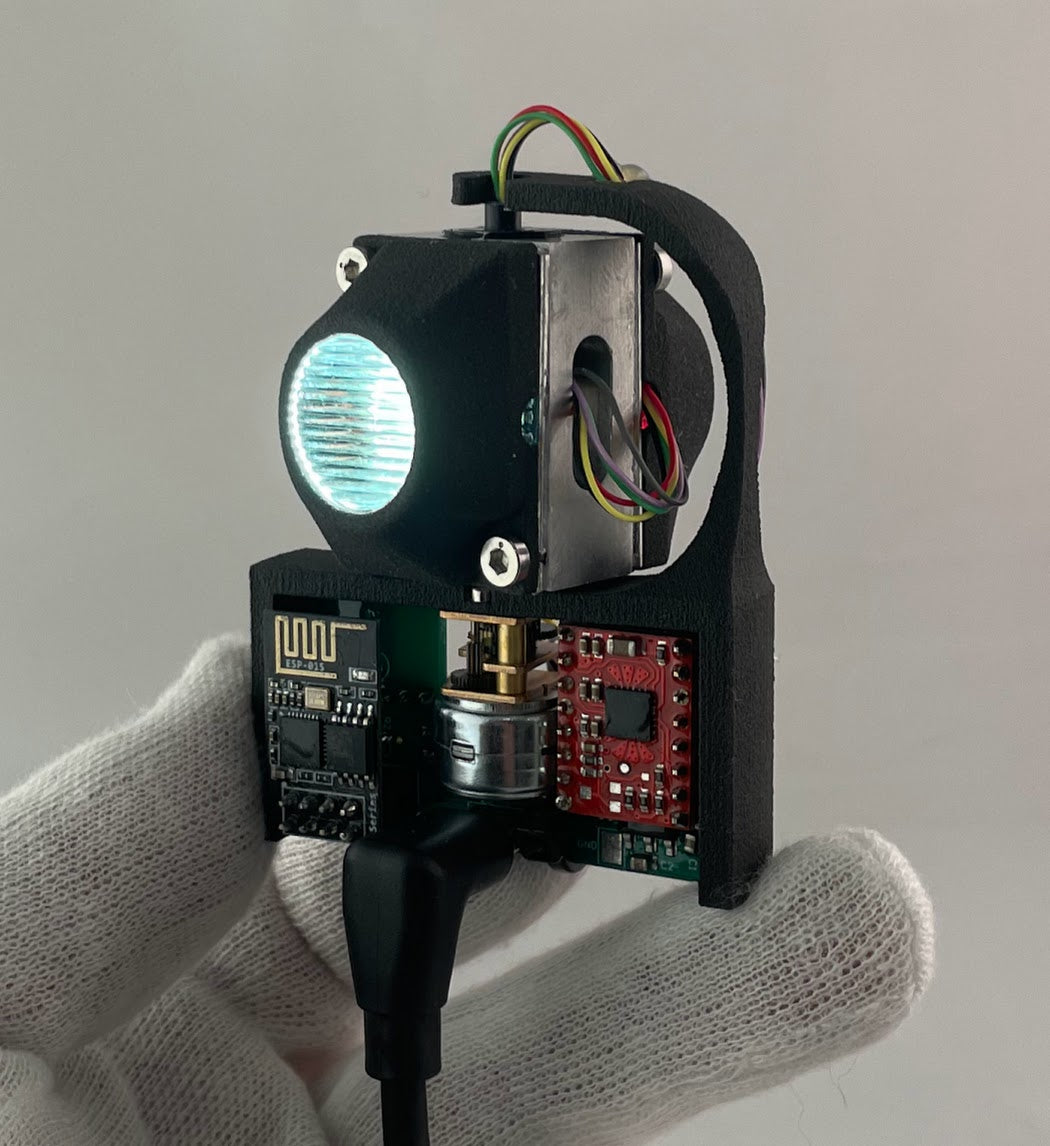

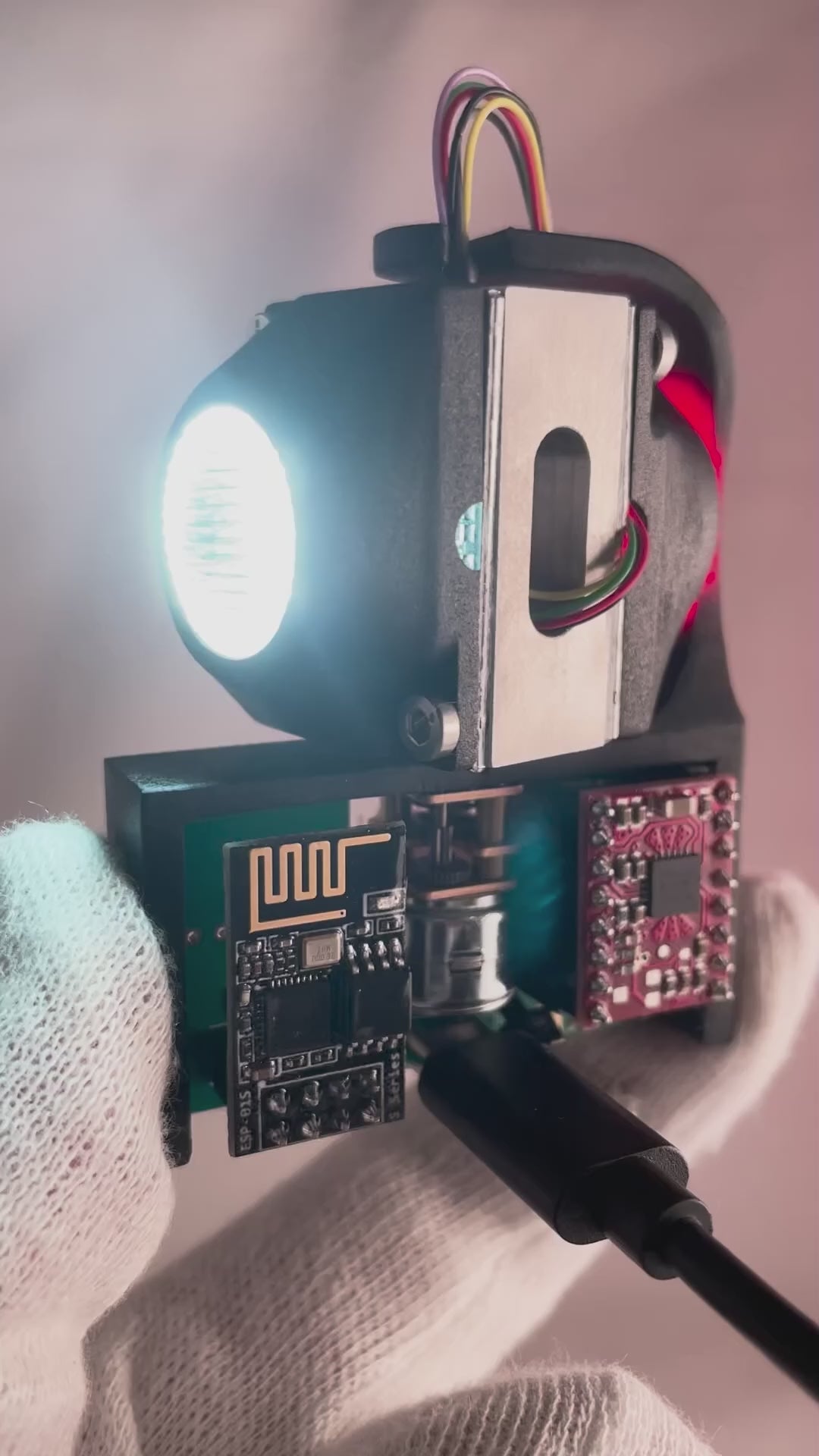

This IoT beacon features a micro geared stepper motor for precise movement, dual LED modules with high-power red, green, blue, and white LEDs, mounted on a solid CNC aluminum light carriage, designed to efficiently manage heat dissipation and supported by a sturdy nylon chassis and lens mounts.

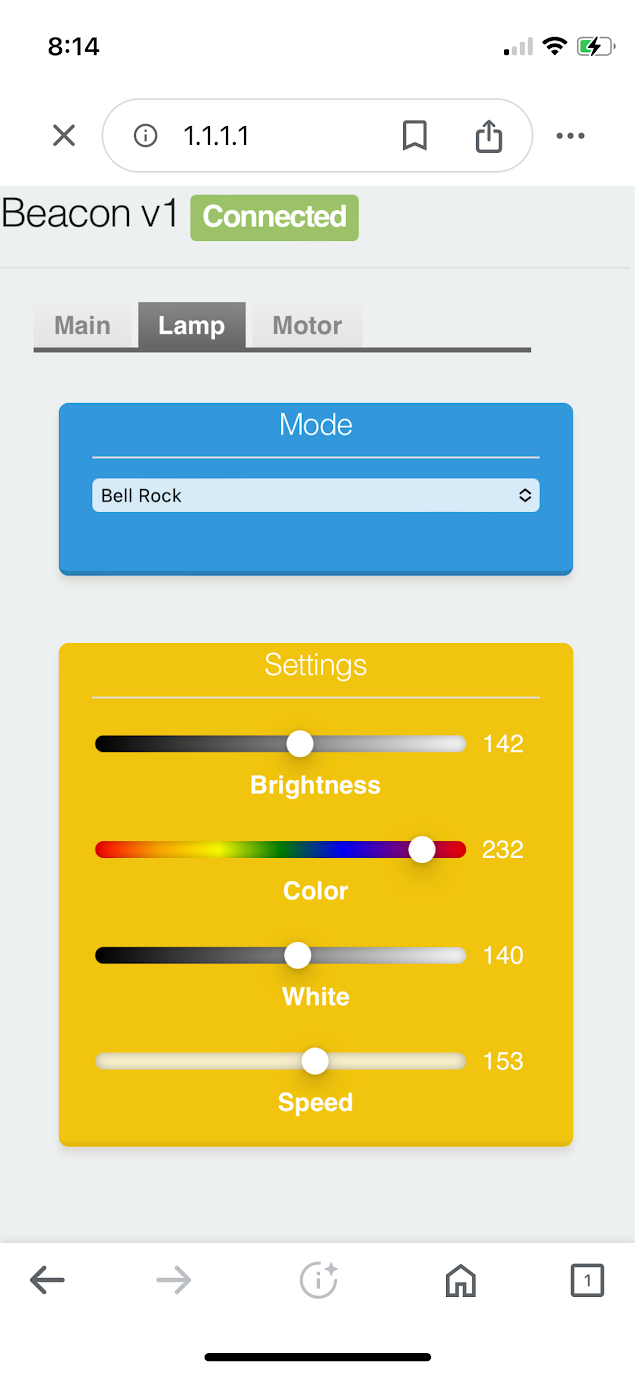

This beacon illuminates the horizon with a mesmerizing array of colors, brightness levels, and dynamic lighthouse modes. The motor and lights are controlled via a locally hosted webpage. Optional firmware/script available for control with Home Assistant via ESPHome.
Combine the beacon with a lightroom and tower or add it to your own lighthouse.
Specifications
Power: USB-C, 5V/2A

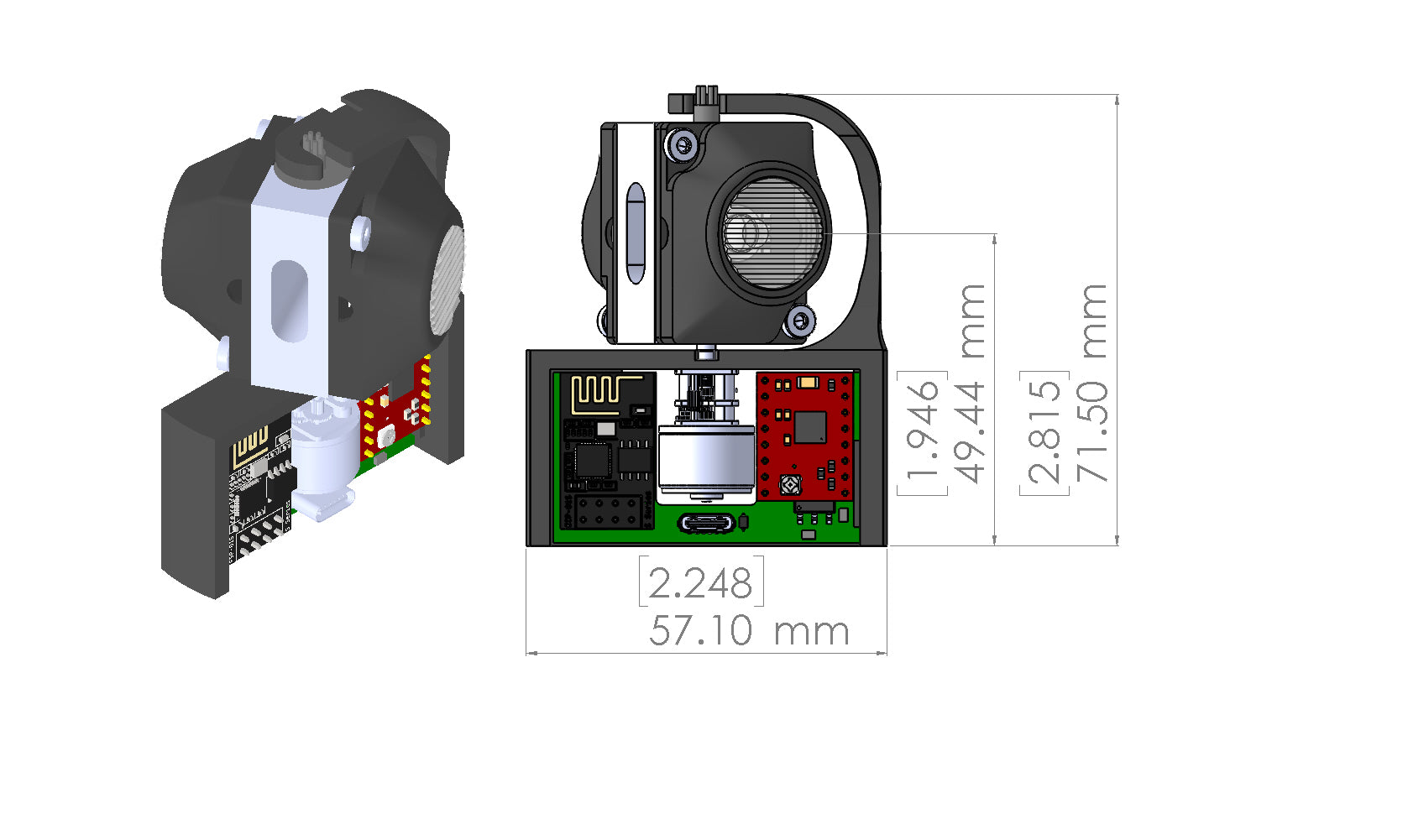

Dimensions: 71.5mm x 57.1mm
Features

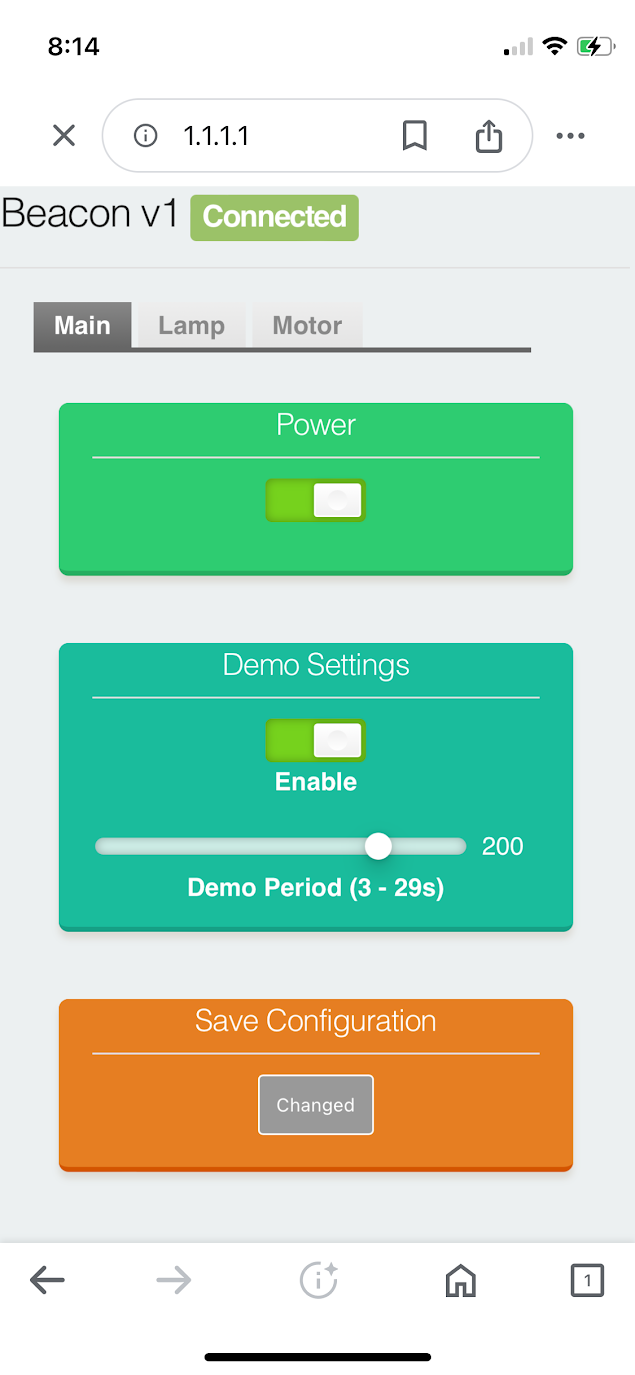

WiFi Web UI
Dual rotating 4W RGBW LEDs with mode/color/brightness control

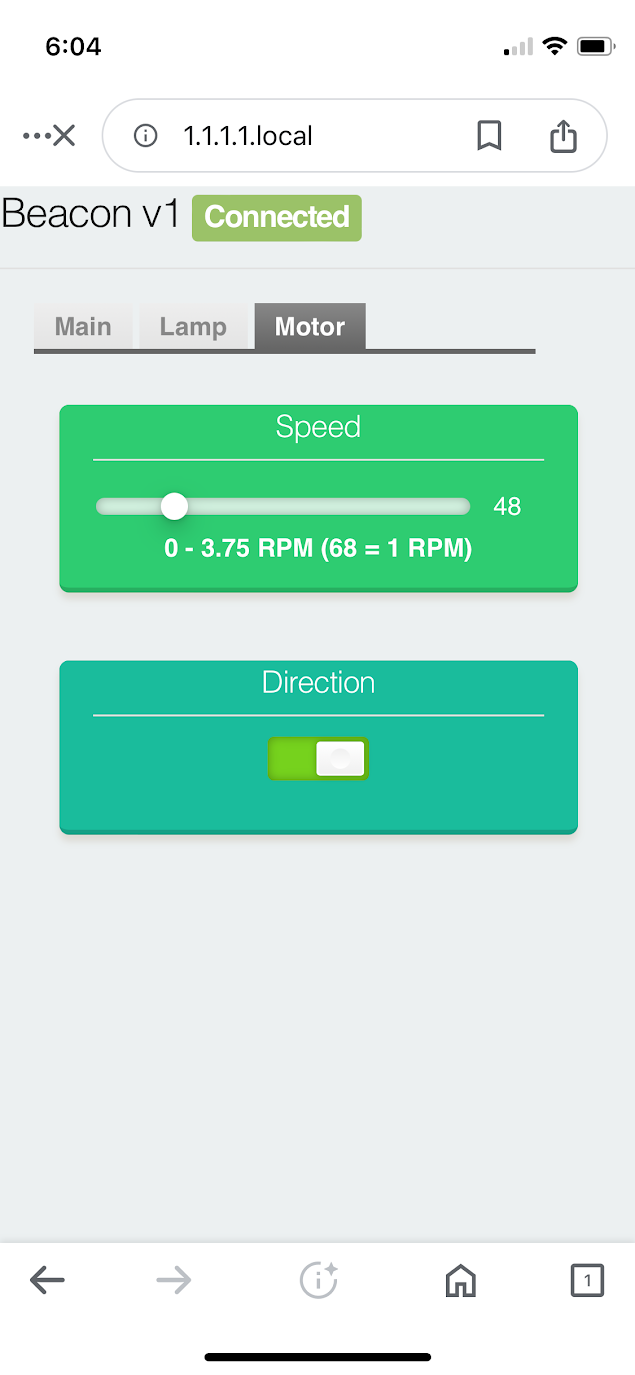

Geared Stepper Motor with speed/direction control
Configuration saved to memory
Modes
Solid color
Pulse color
Pulse color alternating lamps
Strobe color
Strobe color alternating lamps
Bell Rock (red/white)
Wolf Rock (white/white)
Yokohama (emerald/white)
Emerald time (simulated warm-up of metal-halide lamps)
Rainbow
Random
Random pulse color
Random pulse color alternating lamps
Random strobe color
Random pulse color alternating lamps
Demo (cycles modes with random color/speed/direction)
